2024
DEVIL-RAY

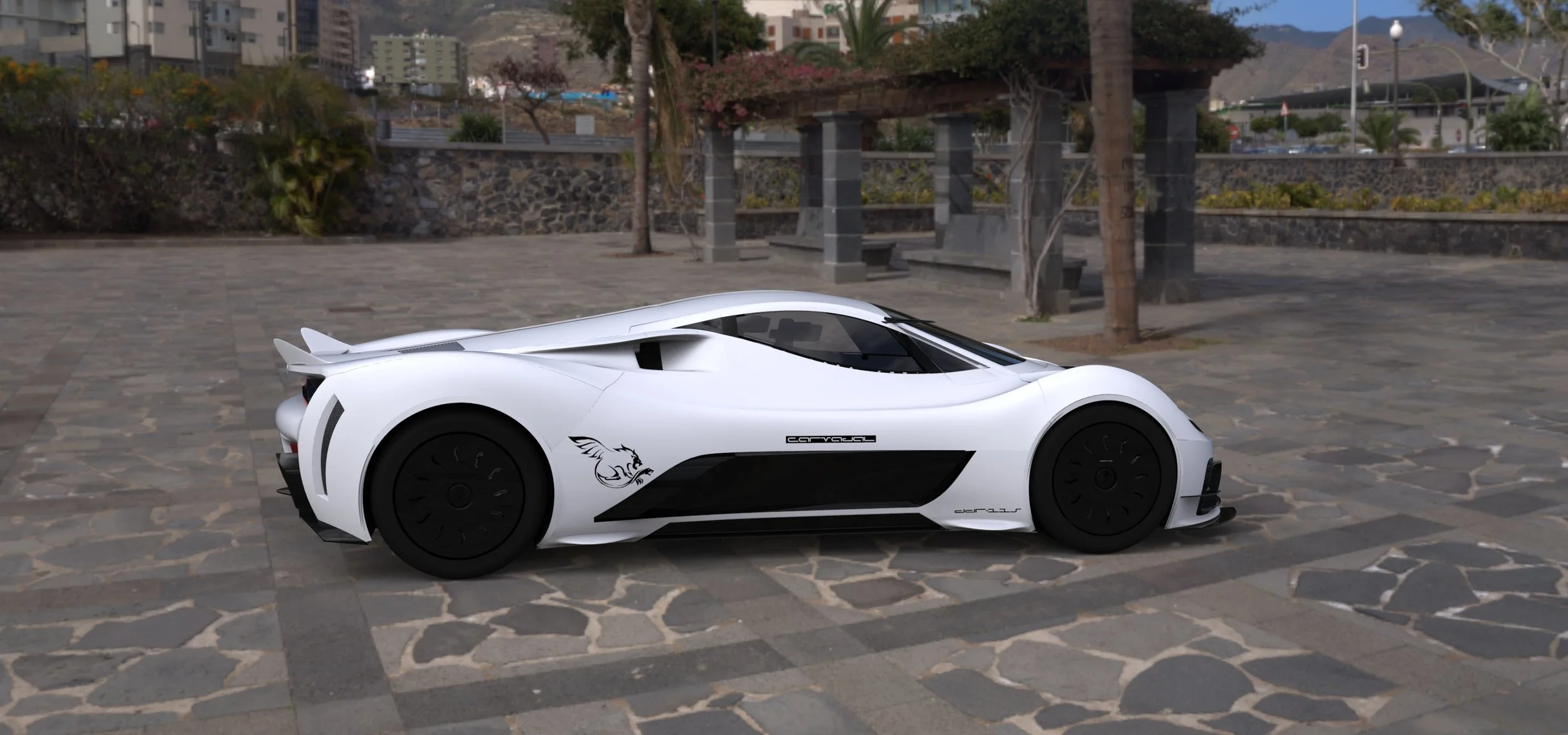

Devil-Ray was designed for the street and the race track. We use highest quality performance materials in the industry, from aluminum to carbon fiber, and an intense design analysis to ensure the vehicle performs as stellar as it looks.

• *Power + Drivetrain (not included - chosen by client)

  • LS , Coyote or Electric

  • Griffin Gearboxes 4,5,6 speed recommend.

  • Drive rear wheel drive or AWD

• Efficiency

• 500 mile range (est) for the electric version

• Aerodynamic (est) Cd: 0.23

• Dimensions

  • Width w/o mirrors 82. inches

  • Width with mirrors 86.23 inches

  • Length 182 inches

  • Height 45 inches

  • Wheelbase 111 inches

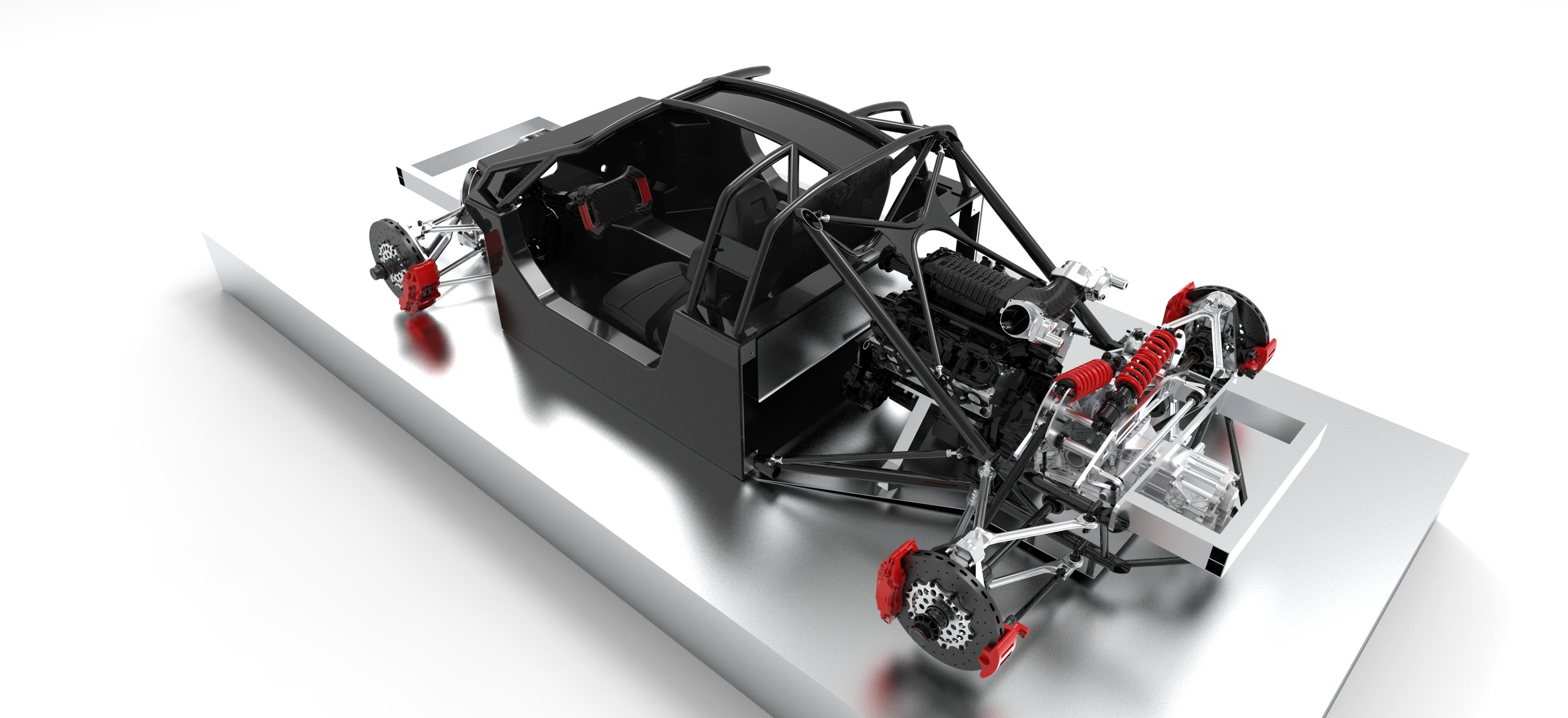

• Chassis & Body included.

  • Carbon fiber tub

  • Chromoly subframes with aluminum crumple structure

  • Chromoly roll cage

  • Billet aluminum Suspension push rod

  • Fuel cell tank

  • Complete composites body, glass, lights, body harness

    DONOR PARTS YOU WILL NEED.

    • C6 Corvette hubs

    • C6 Corvette brake system

    • C6 Corvette steering system

    • C6 Corvette seats

    • C6 cooling system

    • C6 corvette window regulators
